A doublet is an optical lens assembly consisting of two individual lenses cemented or spaced closely together. The purpose of a doublet is to correct chromatic aberration, a common optical aberration that causes different wavelengths of light to focus at different distances from the lens, resulting in color fringing or blurring in images.

  • Doublet with BK7 and F2
  • The chromatic aberration will be minized
  • There are three sphere surface, so the SPHA will be also corrected.
  • The optimization will silde to the local vellay, but we can use the multi-start to find a better solution.
  • MF target: EFL=100mm and RMS Spot Radius for all F D C wavelength

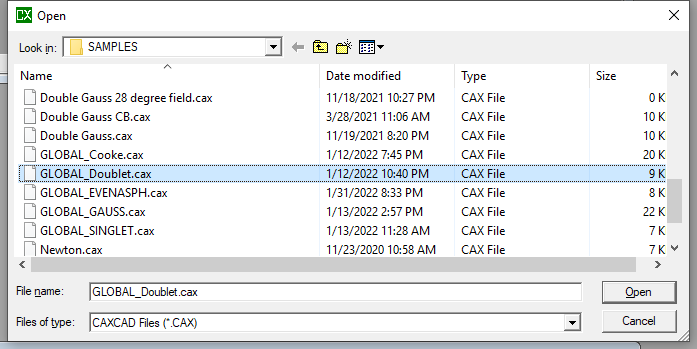

 Open the initial data from the sample folder

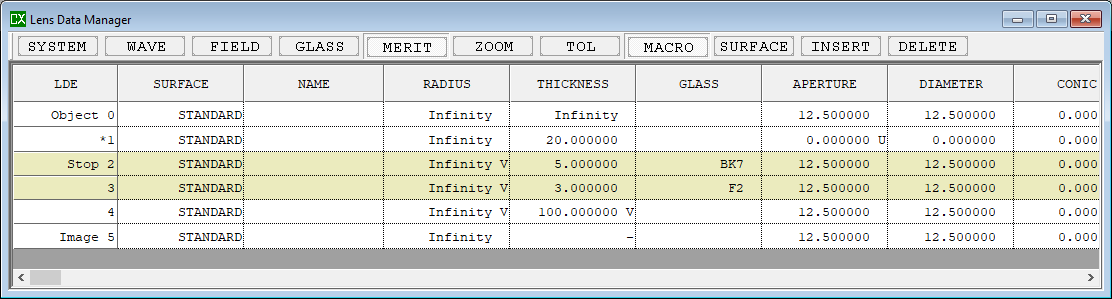

Lens data


The EPD is 25mm

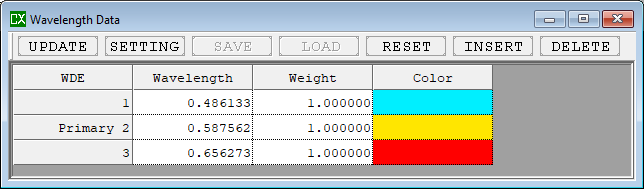

F D C wavelength

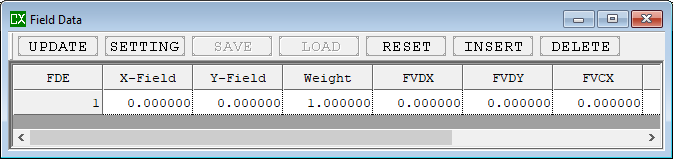

0 angle fileld

RMS Spot Radius MF and 100mm EFL

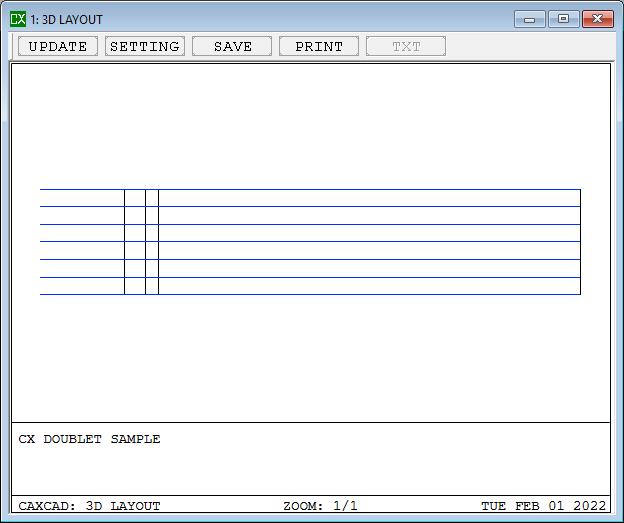

The 3D Layout

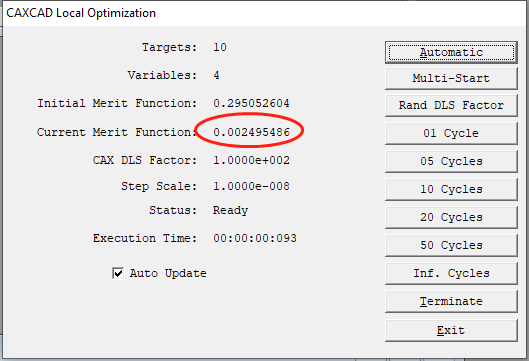

We can use the Multi-Start tool to find the initial data

Many samples can be the start point.

We got a good design.

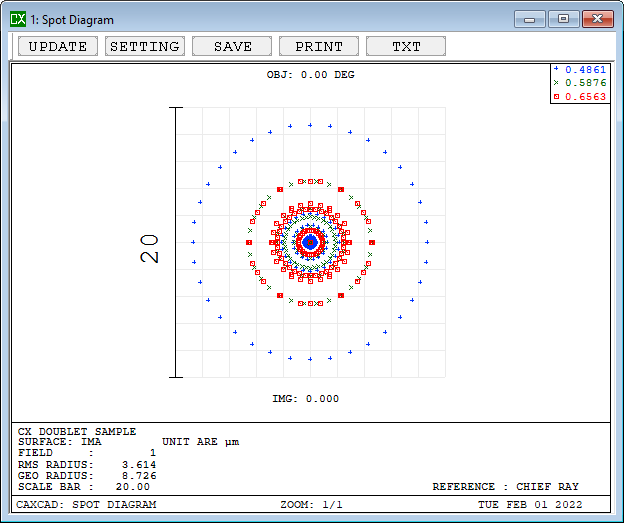

Spot Diagram

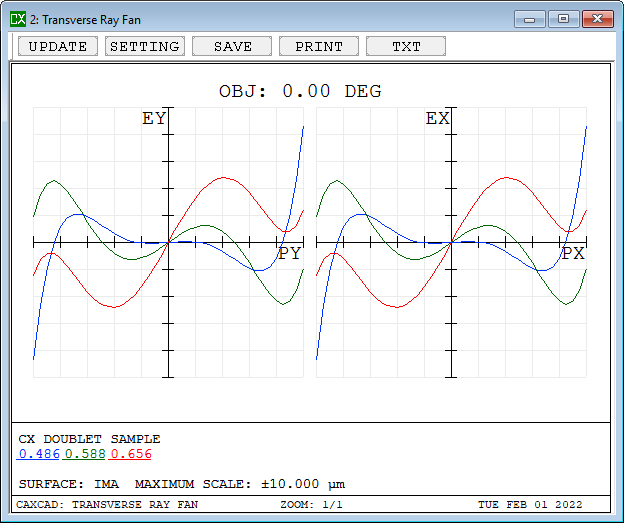

Ray Fan
